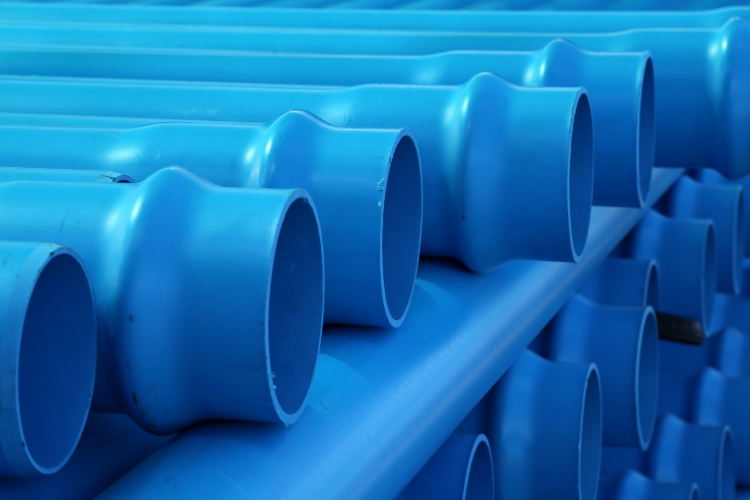

UPVC Pipes

Flo-Tek pipes and fabricated fittings are intended for below ground pressure applications for the conveyance of potable water and reticulation systems, and for other applications in which continuous temperatures in excess of 25 °C are not encouraged.

Pipe Standards

PVC-U (20mm-90mm)

  • SANS 966-1 Standard
  • 25 MRS (MPA)
  • 10.0 Design stress
  • 2.5 Safety factor

PVC-U (100mm-90mm)

  • SANS 966-1 Standard
  • 25 MRS (MPA)
  • 12.5 Design stress
  • 2.0 Safety factor

Pipe Dimensions

All pipes are made to provide an effective length of 6.0 meters from 20 mm to 250 mm and 5.8 meters from 315 mm to 500 mm after installation; the outside diameters are the same for all pressure classes of the same size and there are 6 classes of pipes. Download the brochure for more details.

Sizes All pipes are made to provide an effective length of 6.0 meters from 20 mm — 250 mm and 5.8 meters from 315 mm — 500 mm after installation; the outside diameters are the same for all pressure classes of the same size and there are 6 classes of pipes.
  • Environment-friendly & lead-free material
  • Excellent flow characteristics: reduces friction losses
  • Best long-term strength (serves in excess of 50 years)
  • Long-term strength, toughness and stiffness
  • Large bore and high flow capacity
  • Durability and toughness
  • Resistant to acids and alkalis
  • Resistant to abrasion, scouring and modern cleaning methods
  • Light mass: for easy handling and installation
  • Elastomeric locked-in sealing ring system
  • Inflammable: Does not support combustion
